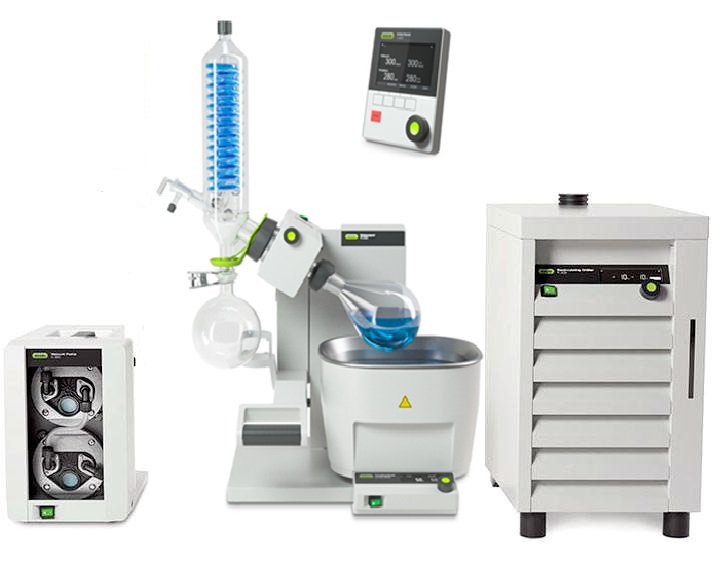

Rotavapor® R-300 System with Interface I-300 and recirculating chiller F-305
Every Rotary Evaporator Rotavapor® R-300 will be delivered with a transparent PLASTIC+GLAS (P+G) safety coating, a vertical glass assembly (V), NS29/32, and a vacuum pump V-300. Interface, heating bath and recirculating chiller could be chosen from the options below.
Interface I-300

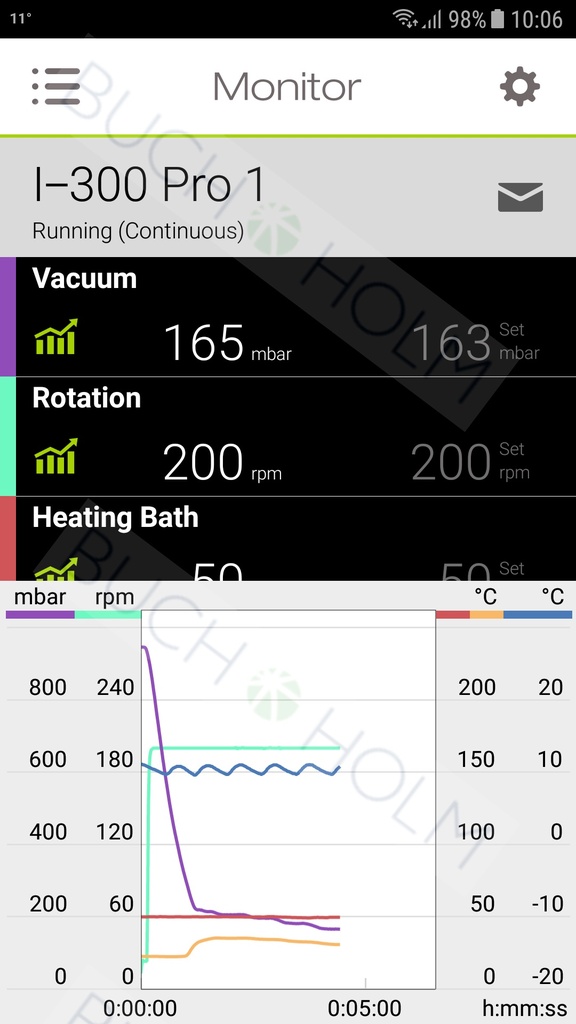

With VacuBox, Woulff bottle. Operation by navigation knob and function keys. Wide range of operating modes (manual, timer, solvent library, automatic distillation, drying). Compatible with BUCHI Rotavapor App for mobile push notifications and remote monitoring.
Vacuum pump V-300 (1.8m3/h, 5mbar)
Is a chemically resistant PTFE diaphragm vacuum pump with transparent front panel to observe the membrane for highest distillation efficiency. Final vacuum: 5 mbar (±2 mbar). Suction capacity: 1.8 m3/h. Speed-controlled operation.
Recirculating chiller F-305
Ecological recirculating chiller. Cooling capacity: 550 W at 15 °C. Temperature range: - 10 °C to +25 °C. Rotation knob for set temperature in steps of 0.1 °C. Lock of cooling temperature. In combination with Interfaces I-300 / I-300 Pro: Temperature setting/monitoring via interface, energy-saving eco-mode and automatic ON/OFF.
Heating Bath B-305
Temperature range of 20 °C to 220 °C. Max. evaporating flasks size: 5000 mL (3 kg). Cordless connection. Digital display of set and actual temperature, rotation speed, lift position. Lock of heating temperature.
Description
Type R-300S with Heating bath B-305
Lift: electric
Capacitor: vertical
Coating: yes
