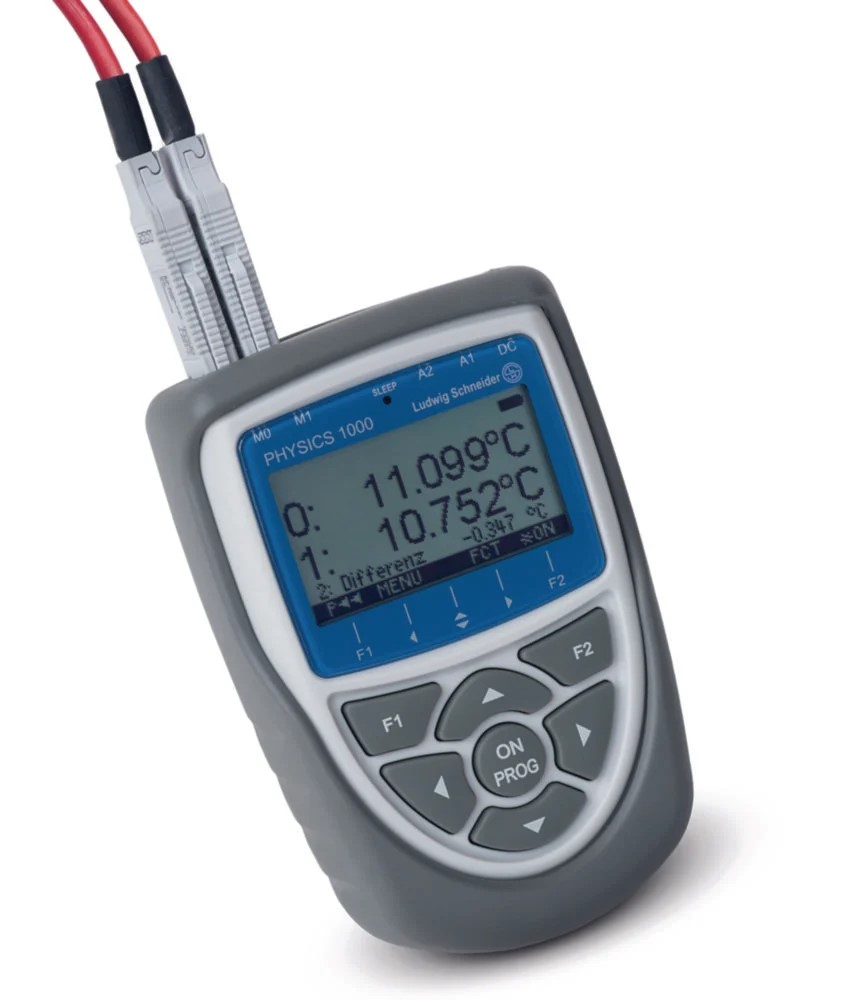

High-precise digital measuring device PHYSICS 1000 from Ludwig Schneider
This ultra precise digital thermometer offers the highest resolution, accuracy and linearity for mains independent measurements.
With its ultra high resolution of 0.001 °C this digital measuring device provides dependable and reproducible results of mobile temperature measurements in quality assurance, process monitoring and production control in the chemical, pharmaceutical and food industries as well as for research and development.
Product features
- Compact shape and ergonomic design
- Measuring functions: measuring value, zero-setting, max.-/min. value documentation, 2-step adjustment, scaling
(optional: multi-point calibration for temperature values)
- Test functions: segment monitoring, range monitoring, sensor error check, battery check
- Interfaces: USB, RS232, Ethernet, Bluetooth, analog
- Language selection: German, English, French
Scope of delivery: Unit with 3 x AA batteries. Temperature probesmust be bought separately.
Technical data PHYSICS 1000
- Probes: resistance thermometers 6313340 and 6313341
- Measuring input: 2 input channels
- Galvanic isolation: Semiconductor relais (50 V)
- Measuring range: -200 °C to +400 °C
- Self calibration: Zero point, measuring current
- Accuracy: 0,010 °C of value ±1 digit
- Temperature drift: 0,003 %/°C
- AD converter: Delta-Sigma 24 bit, 2.5 M/s
- Resolution: 0,001 °C
- Internal RAM memory: 100 measured values
- Memory plug: optional external memory for up to 25,000 values
- Output: 2 output USB, V24, Ethernet, Bluetooth
- Keyboard: 7 silicone keys
- Batteries: 3 pcs AA
- Casing: ABS (max. 70 °C), light grey
- Degree of protection: IP54
- Dimensions and weight: L 127 x W 83 x H 42 mm, 290 g
